Constatus - 3D
Constatus can also stream 3D content (stereoscopic video).
In this example I used:
- König 3D webcam
- latest version of Constatus (version 4.3 or later)
- Google Chromecast
- Sony Bravia television set with 3D glasses (TDG-BR250)
- Google Chrome browser
configuration for constatus
See this example configuration-file.
When the König camera is plugged in, you'll see 2 /dev/video devices. One for the left camera, one for the right camera. You may need to change the "device=" parameters in the example.
In the example the two König cameras are configured and a view. The view is where the two cameras are combined in one stream. When you open the stream in the webbrowser, you will see 1 image with the 2 cameras combined:
Constatus will listen on port 8070, so in your browser go to http://localhost:8070/
In your (chrome-)browser, click on the 3 dots and select "Cast...". There select your own chromecast.
Don't forget to select "full screen" in Constatus.

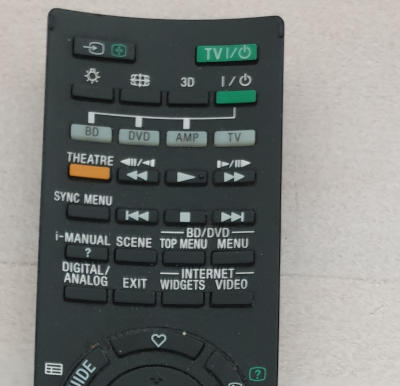

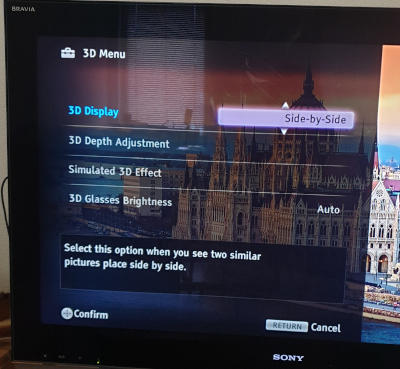

Then press the '3D' button on the TV-remote and select "side-by-side" in the configuration-menu.
When you leave the menu, the TV will start producing a 3D image. You will need to put on the special glasses (don't forget to switch them on).
Note that the effect is not very strong with this camera.
TV-set without 3D enabled:

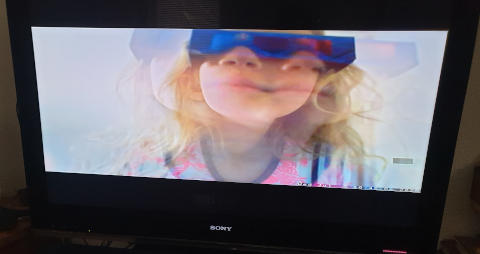

3D enabled but without the glasses:
old school
You can also get the 3D effect with those "red/green glasses":
For this, replace packing = "side-by-side"; by packing = "red-green"; in 3D.cfg.
alternative for the König camera

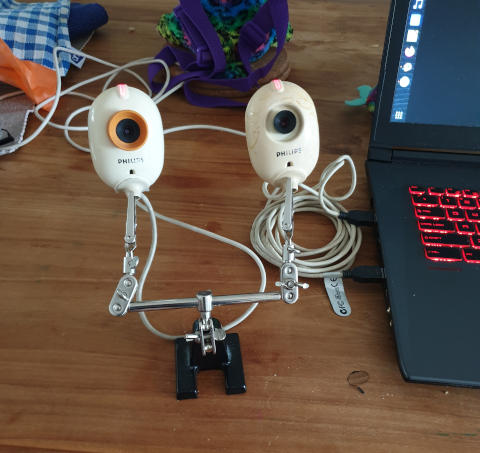

If you have 2 equal cameras, then that's also an option. Set them up 9cm from each other pointing in the same direction:
In this test I used two "Philips PCVC740K ToUcam Pro" cameras. I configured Constatus for red/blue output.
